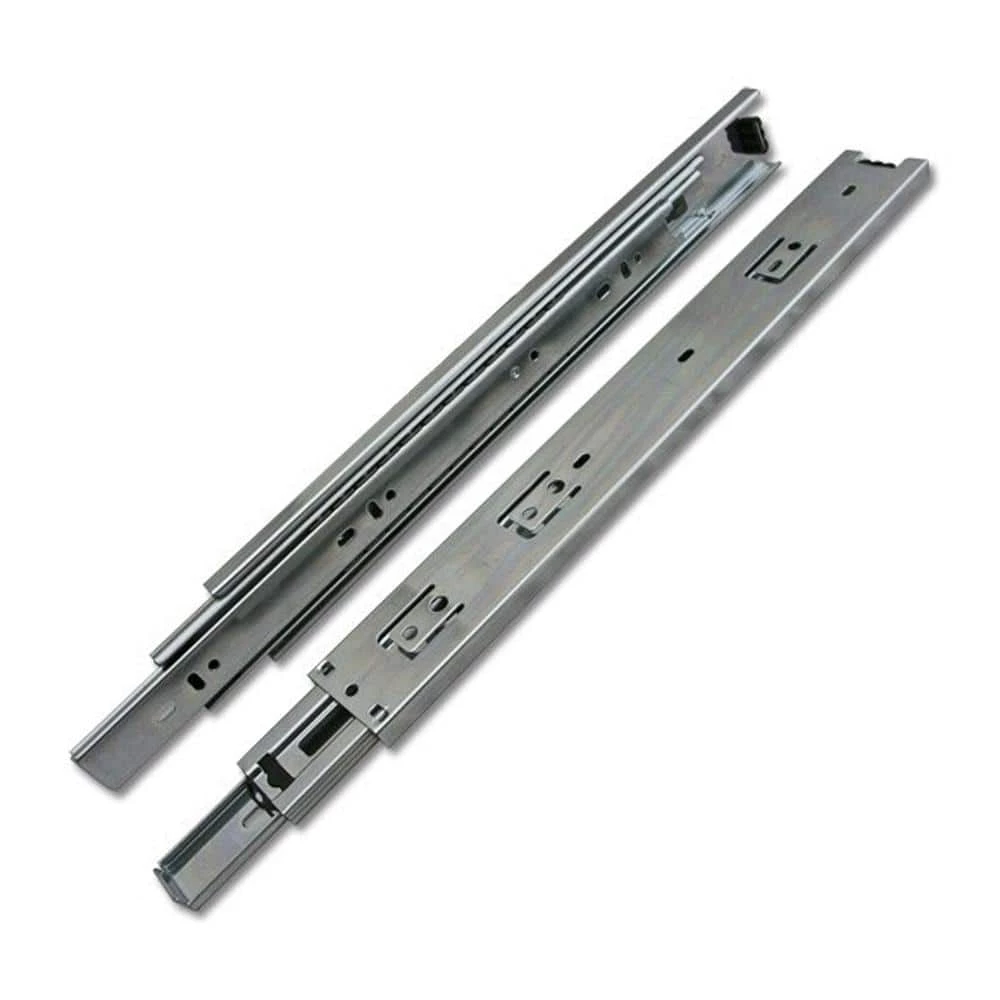

CSH 28 in. Side Mount Over Extension Ball Bearing Drawer Slides (10-Pair)

The 1175 full extension drawer slides with over-travel feature allow the full length of the drawer box to extend past the front of the cabinet. The feature of a full extension drawer slide with over-travel is great for drawers to come out past the counter tops to allow complete access to your drawer box. The 1175 series has a zinc finish and a ball bearing design that operates smoothly and is sturdy enough to support up to 100 lbs. The drawer slides also features a lever disconnect on the side of the slide for easy removal of the drawer.

• Bulk contractor box
• Hardware fasteners not included due to application capacity and variances
• Full extension slide with 1 in. over travel
• 100 lbs. load capacity per pair
• Actual slide spec dimension 700 mm (27-5/8 in) L x 45.7 mm (1-3/4 in) H
• Easy lever disconnect for removing drawer box, 1/2 in. side clearance per side
• Non-handed, steel ball bearings
• Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
