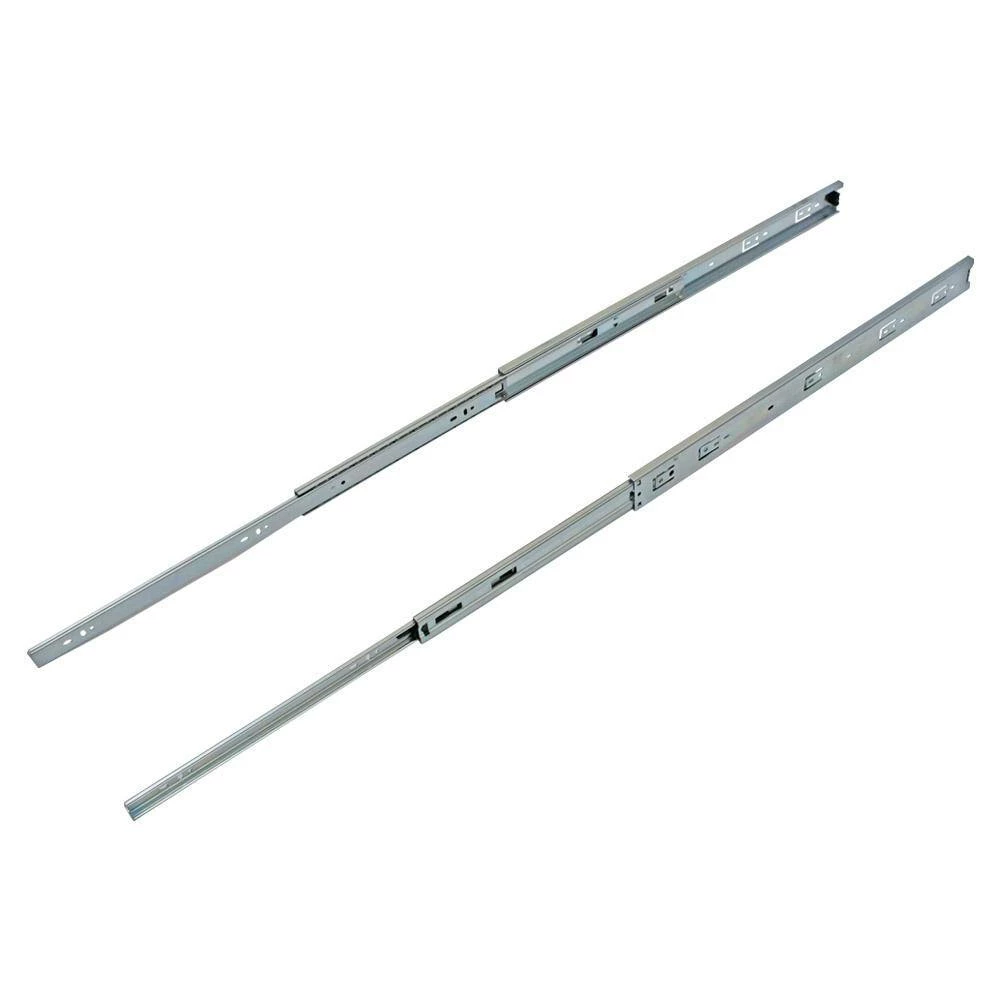

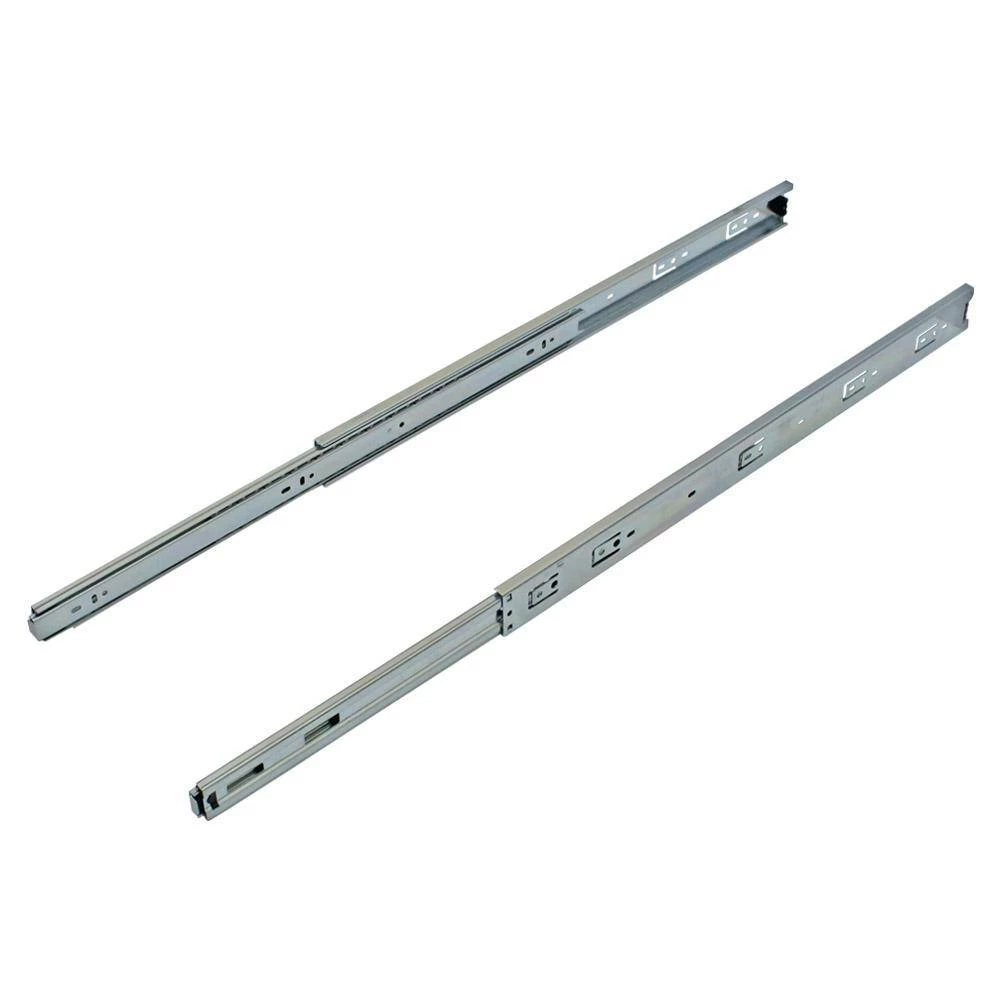

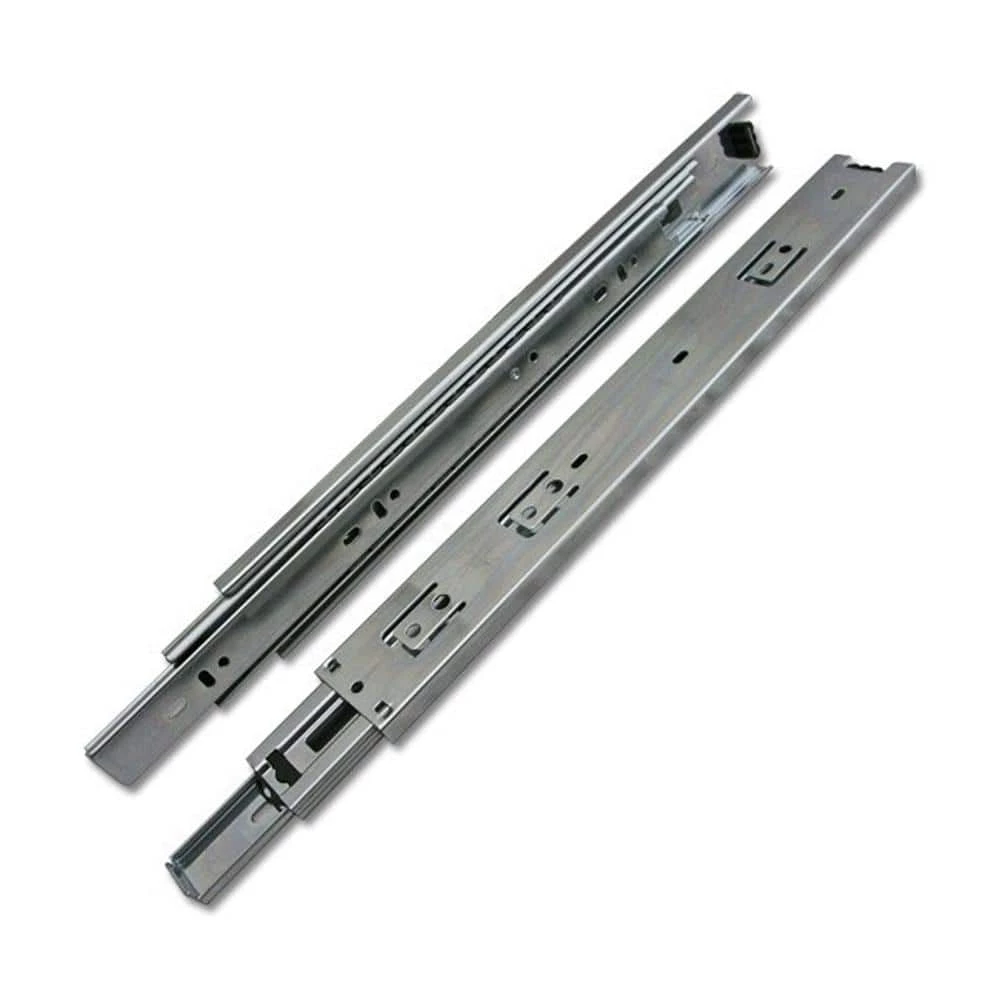

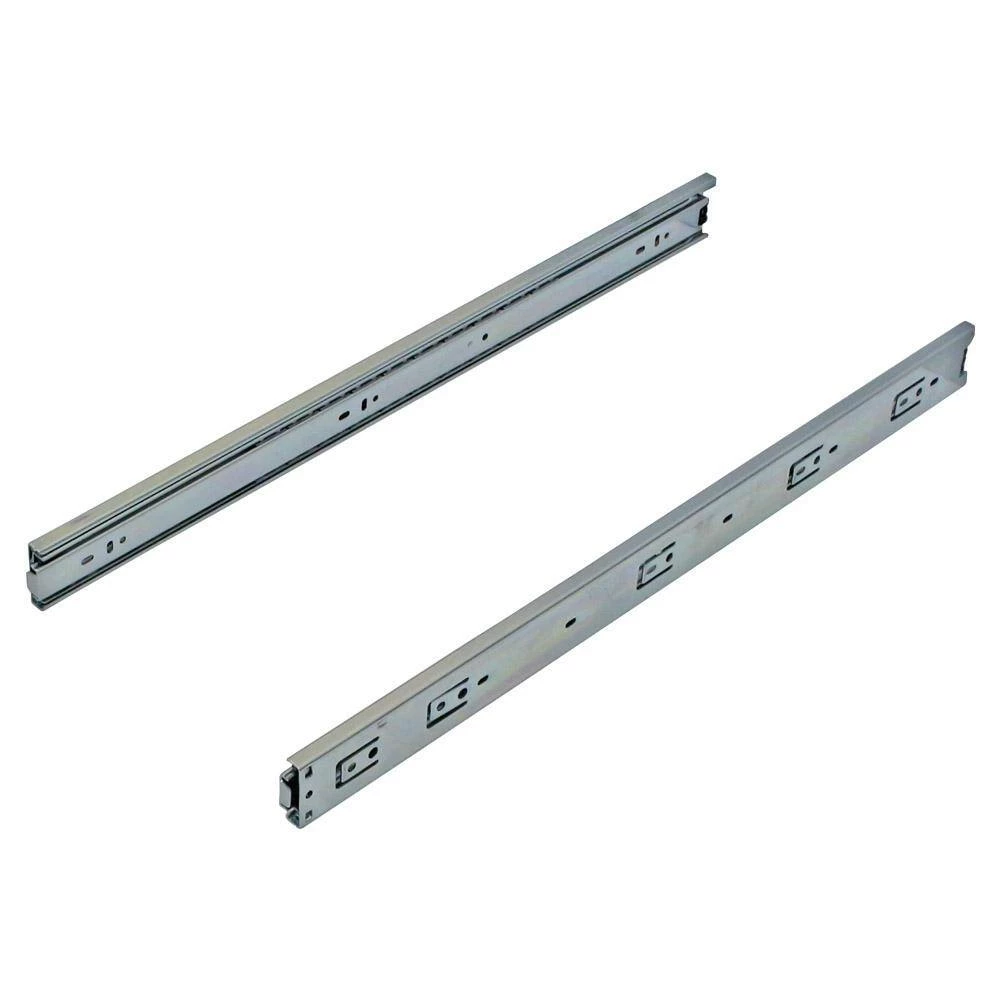

CSH 22 in. Side Mount Full Extension Ball Bearing Drawer Slides (15-Pair)

The 1170 Drawer Slide Series replaces both the Accuride 3800 and KV 8400 series. Available in a zinc finish, these side-mount, non-handed drawer slides feature a 32 mm hole pattern which allows simple access mounting on drawer and cabinet members, breathing tabs that self adjust to the side clearance, a hold/close function, lever disconnect for easy drawer removal and a 100 lbs. weight capacity. Available in 10 in. to 28 in. L.

• Bulk contractor box
• Hardware fasteners not included due to application capacity and variances
• Full extension slide 100 lbs. load capacity per pair
• Exceeds ANSI/BIFMA tests

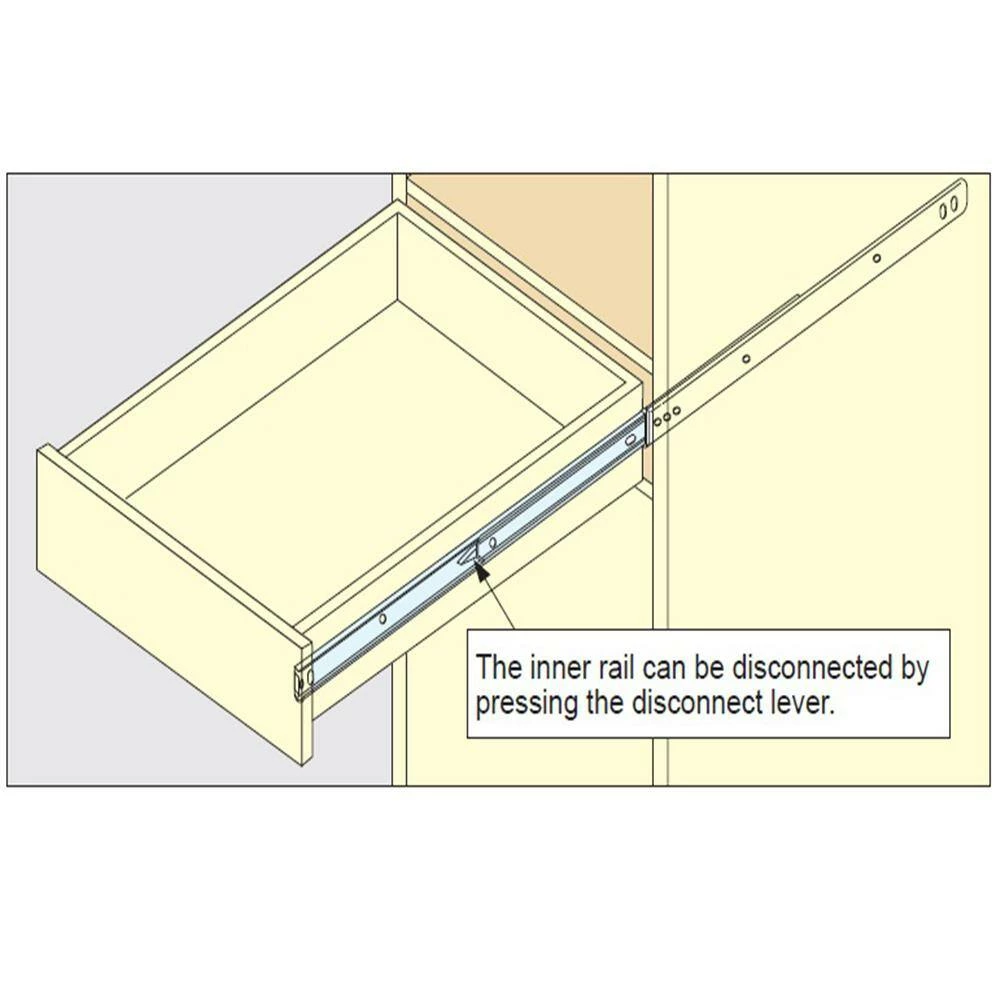

• Easy lever disconnect for removing drawer box, 1/2 in. side clearance per side
• 32 mm hole pattern metric slide
• Non-handed, steel ball bearings
• Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
• Optional back socket for face-frame applications use model number 39.1170
