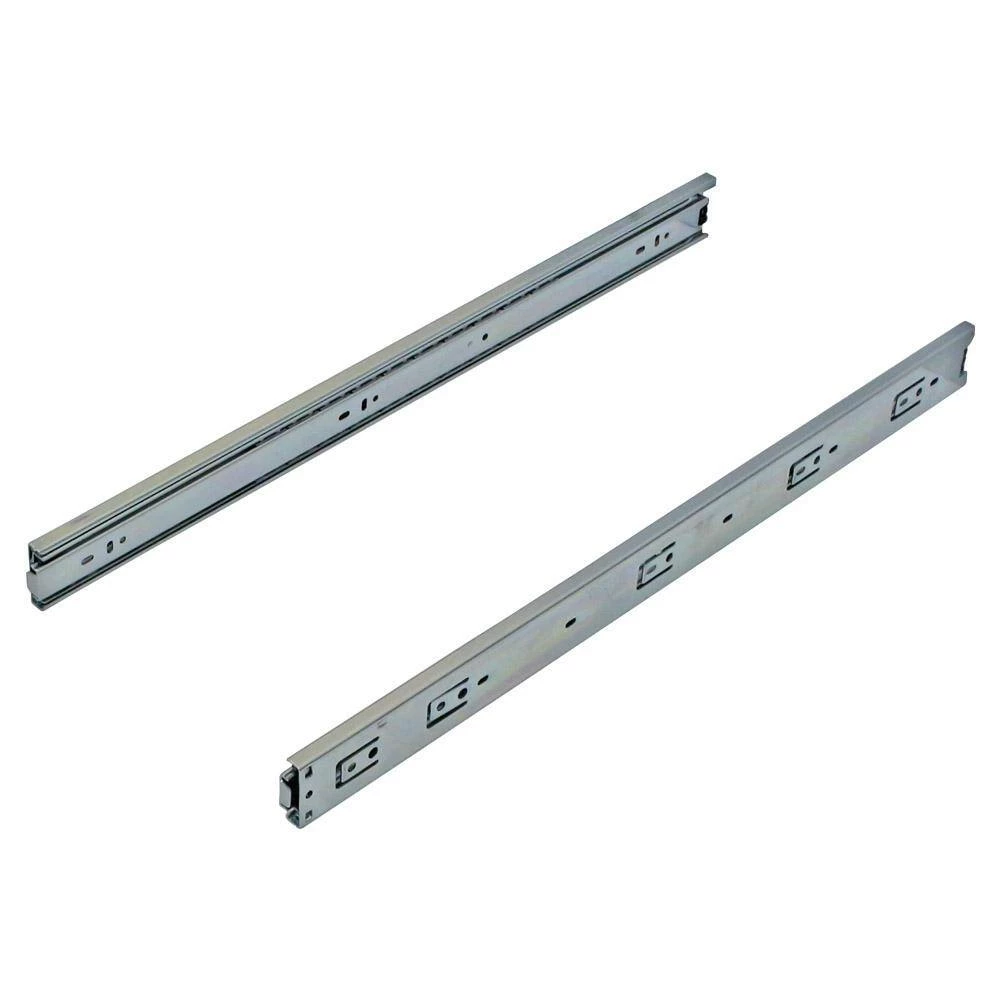

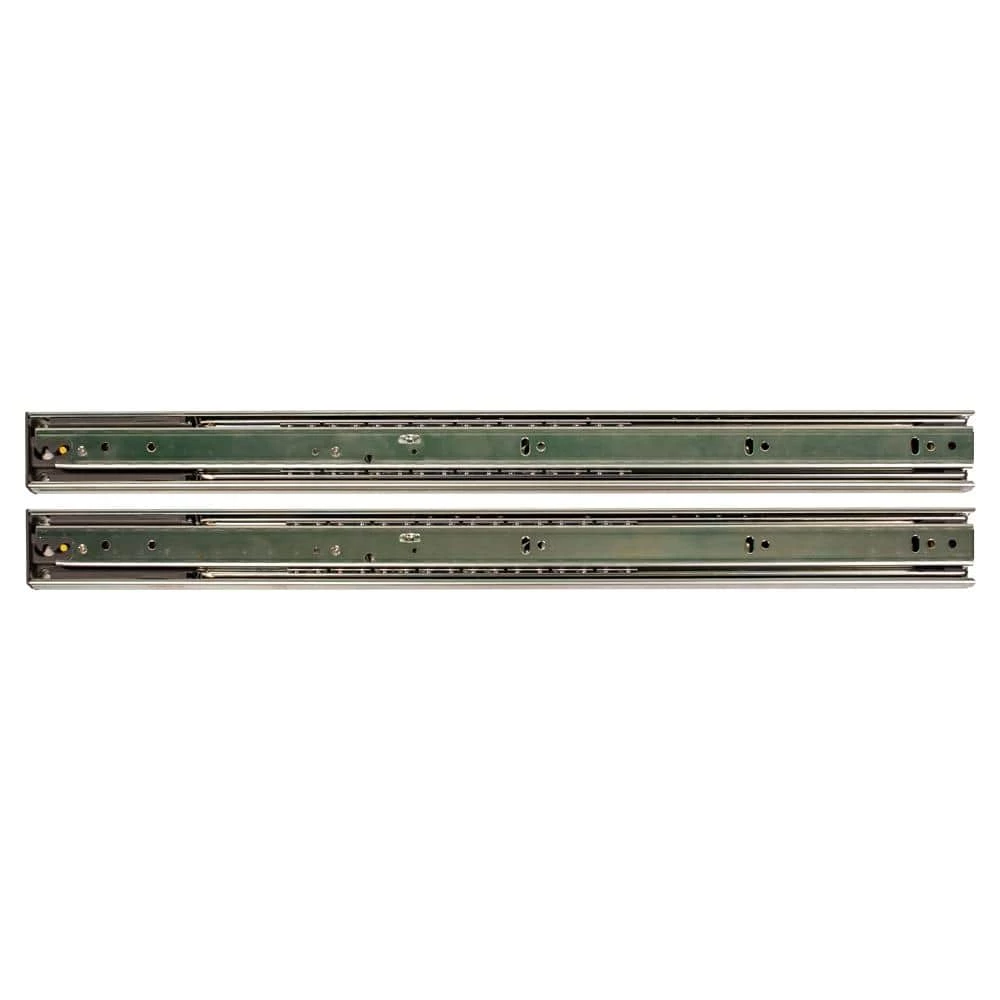

CSH 20 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide (10-Pair)

CSH 20 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide (10-Pair) - Image 2

CSH 20 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide (10-Pair) - Image 3

CSH 20 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide (10-Pair) - Image 4

CSH 20 in. Soft Closed Full Extension Ball Bearing Side Mount Drawer Slide (10-Pair)

Original price was: $222.15.Current price is: $97.99.

SKU: CSH 313565001 Categories: Cabinet Hardware, Drawer Track Guides Tags: 10, CSH, Soft Close,Value Pack, Steel, Zinc

fast shipping
Unbeatable quality, unbeatable prices.
There are quality problems, free return and exchange
Free and fast shipping worldwide

The 1145 Soft-Close Drawer Slide Series features a smooth ball bearing operation with an integrated soft-close mechanism. The 1145 series Soft-Close slides is perfect for Kitchen, Bath, Furniture upgrades and many other useful applications. The 1145 series Soft-Close slides come in a range of length of sizes from 14 in. to 28 in. in a clear zinc chromate finish.

Bulk contractor box
Hardware fasteners not included due to application capacity and variances
Long soft close stroke of 2-3/8 in.
Full extension slide 100 lbs. load capacity per pair
Exceeds ANSI/BIFMA tests
Non-handed; steel ball bearings
Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
Actual slide spec dimension 500 mm (19-11/16 in.) x 45.6 mm (1-3/4 in.) H

Builders Hardware Product Type	Drawer Slides
Features	Soft Close,Value Pack
Finish Family	Zinc
Hardware Color Family	Metallic
Hardware Finish Family	No Finish
Material	Steel
Package Quantity	10
Returnable	90-Day
Manufacturer Warranty	N/A
Product Depth (in.)	19.6875 in
Product Height (in.)	1.75 in
Product Width (in.)	.5 in
