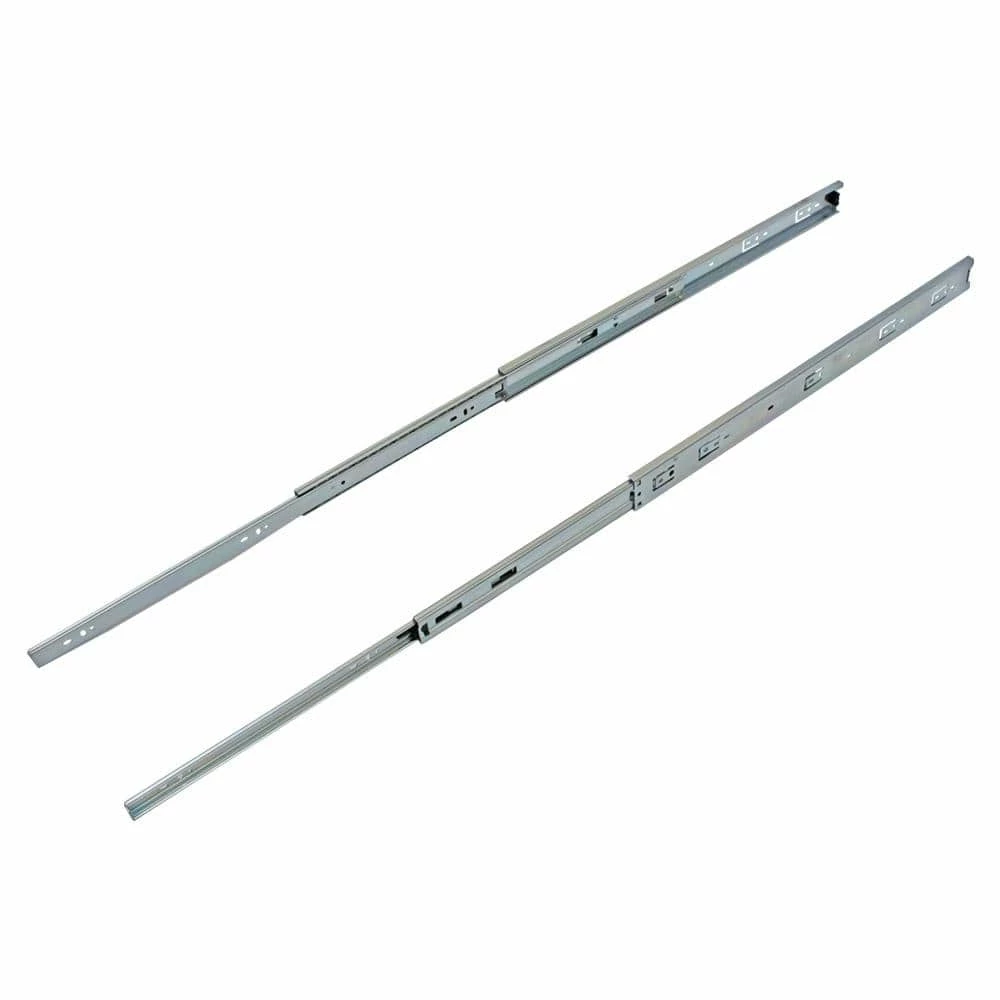

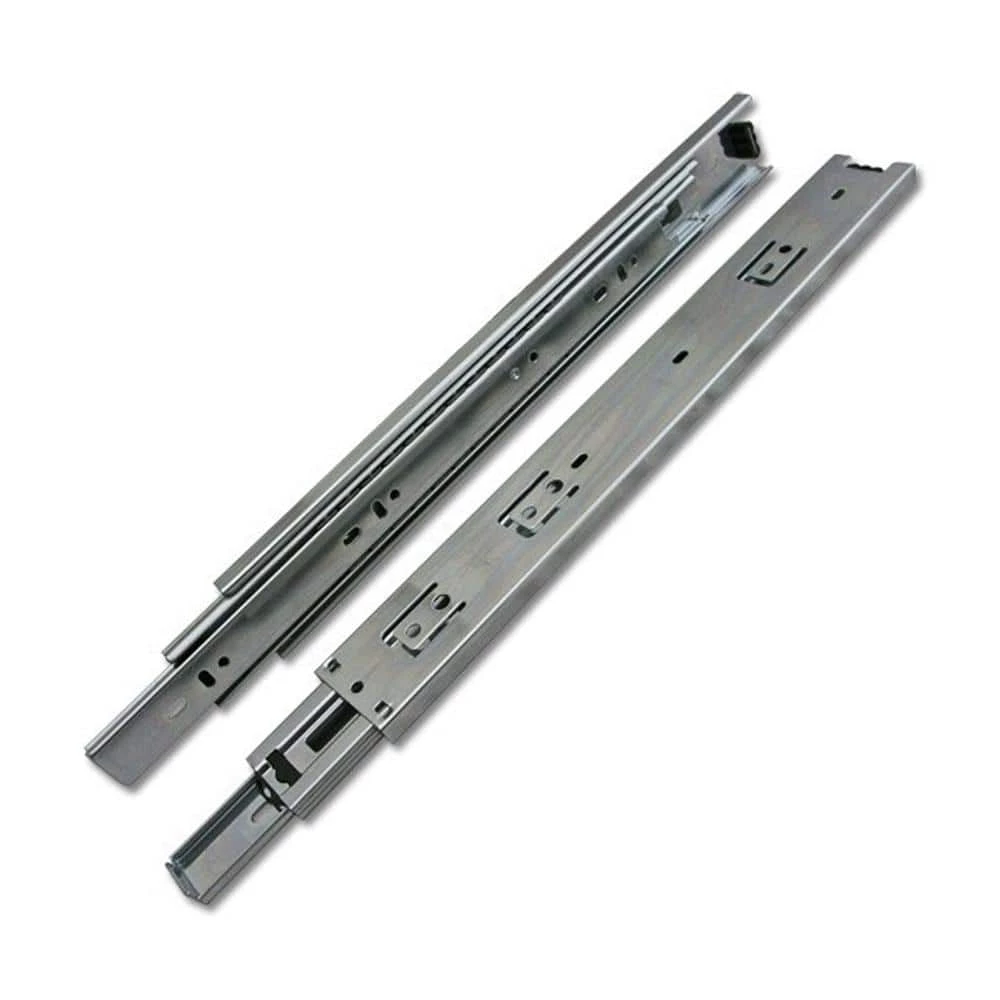

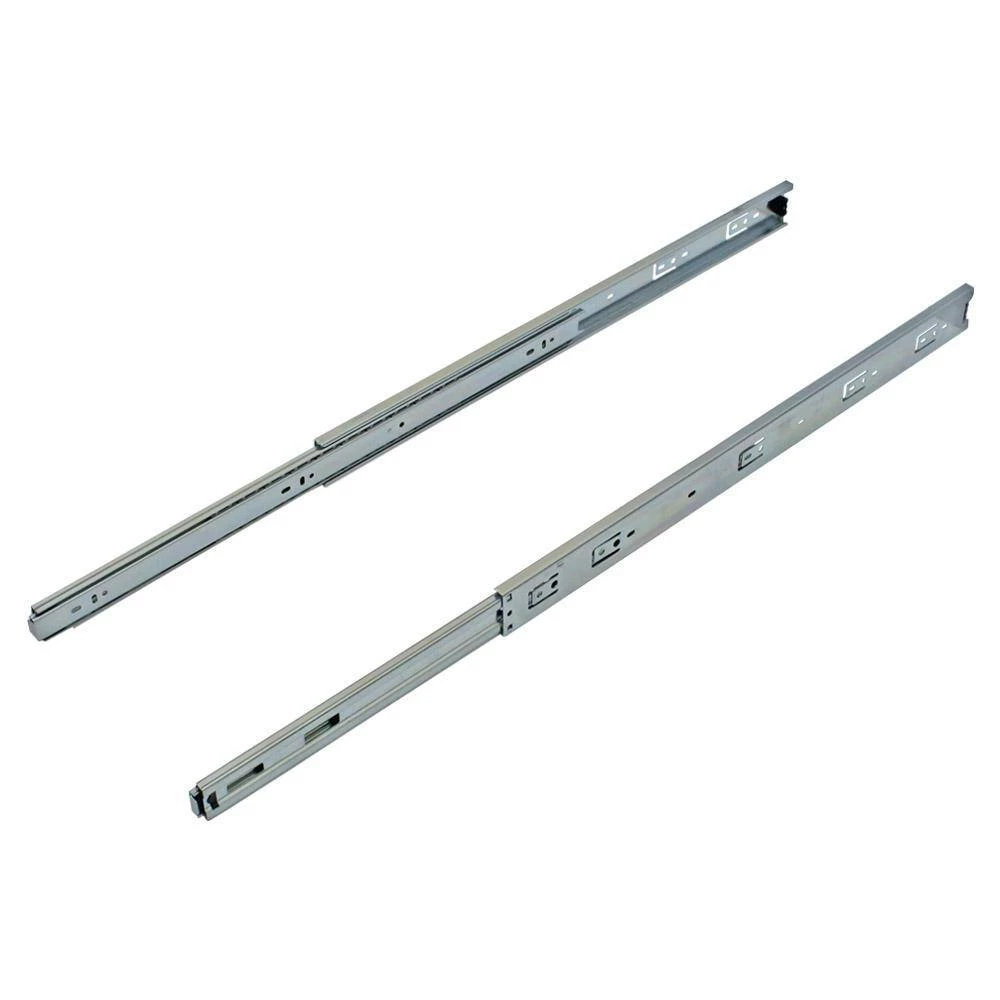

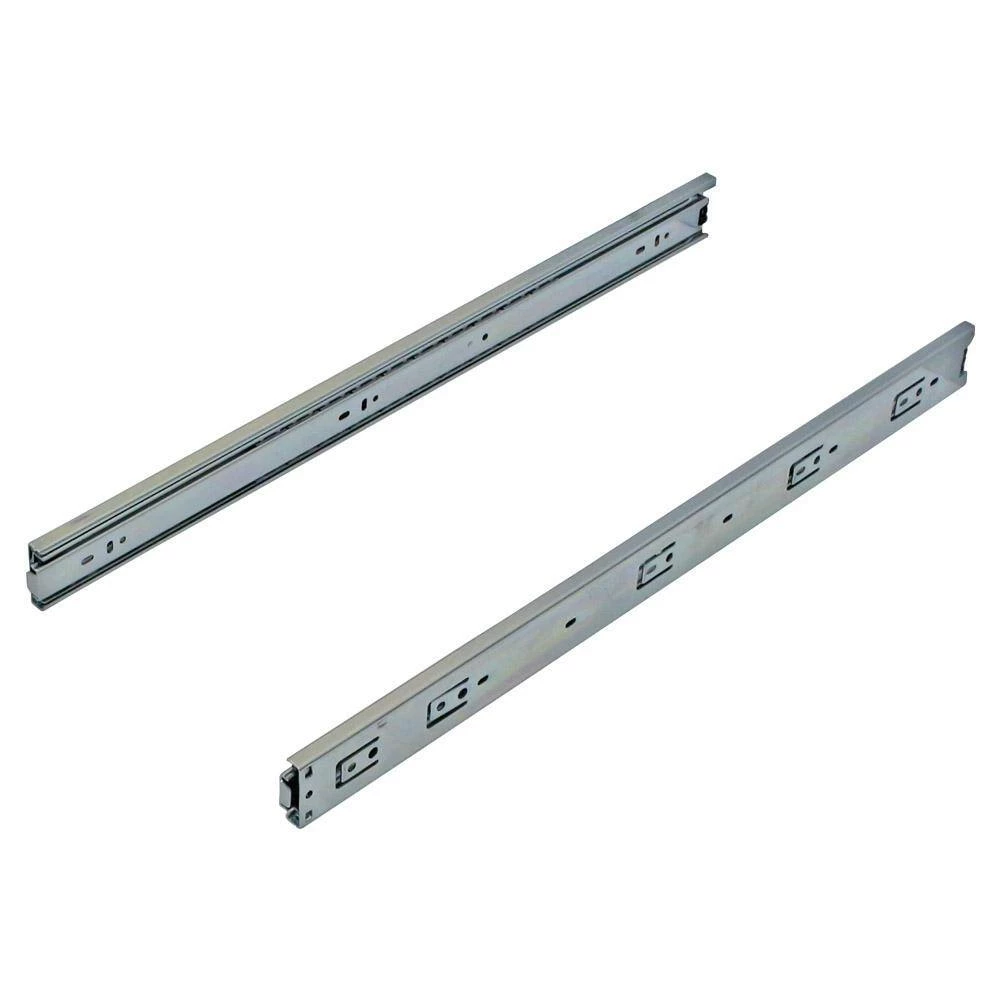

Looking for a heavier duty drawer slide? The 1180 drawer slide series has a bright zinc finish, ball bearing design that operates smoothly, and is sturdy enough to support up to 130 lbs. Our upgraded slides feature a full extension with a one inch over-travel which the drawer can extend past the front of the cabinet (great for drawers under counter tops). The ball bearing slides come in a range of length of sizes from 10 in. to 28 in. and has a lever disconnect for easy removal of the drawer box.
- Bulk contractor box
- Hardware fasteners not included due to application capacity and variances
- Full extension slide with 1 in. over travel
- 130 lbs. load capacity per pair

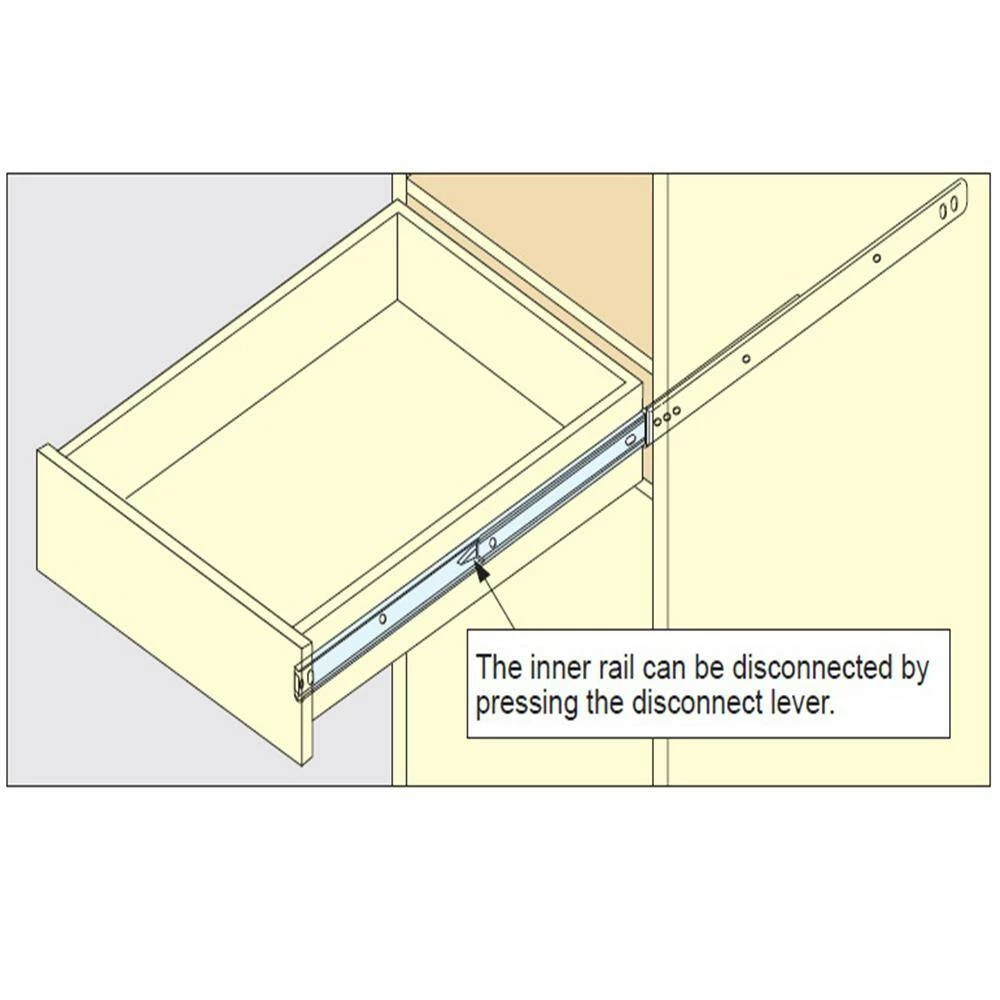

- Easy lever disconnect for removing drawer box, 1/2 in. side clearance per side
- Non-handed, steel ball bearings
- Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
- Optional back socket for face-frame applications use model number 39.1170
