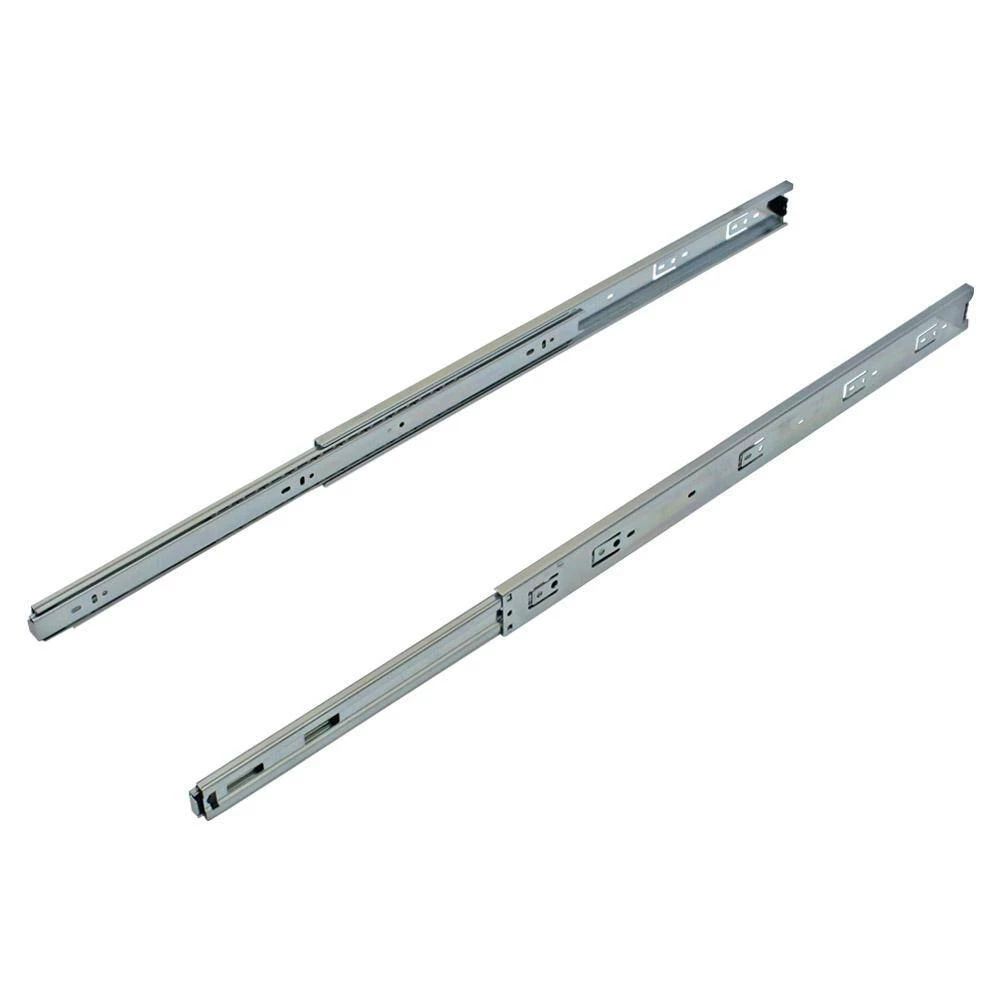

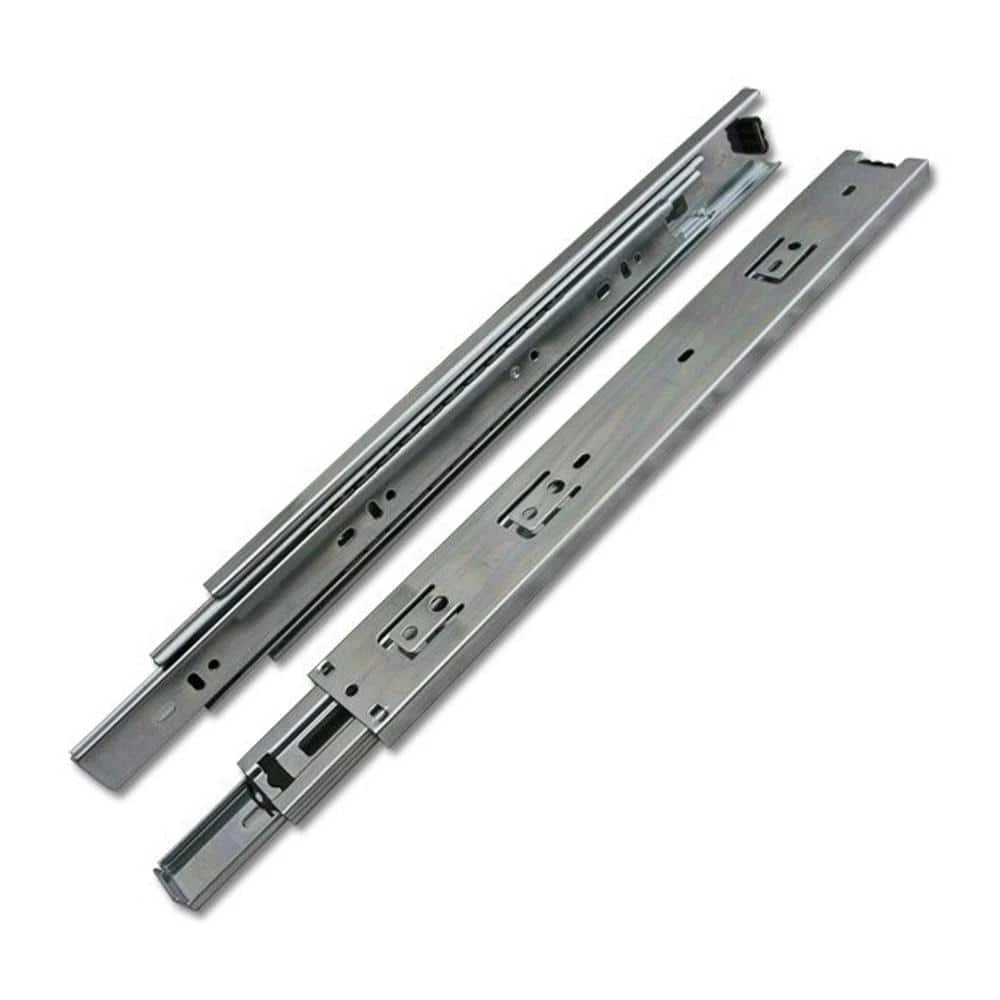

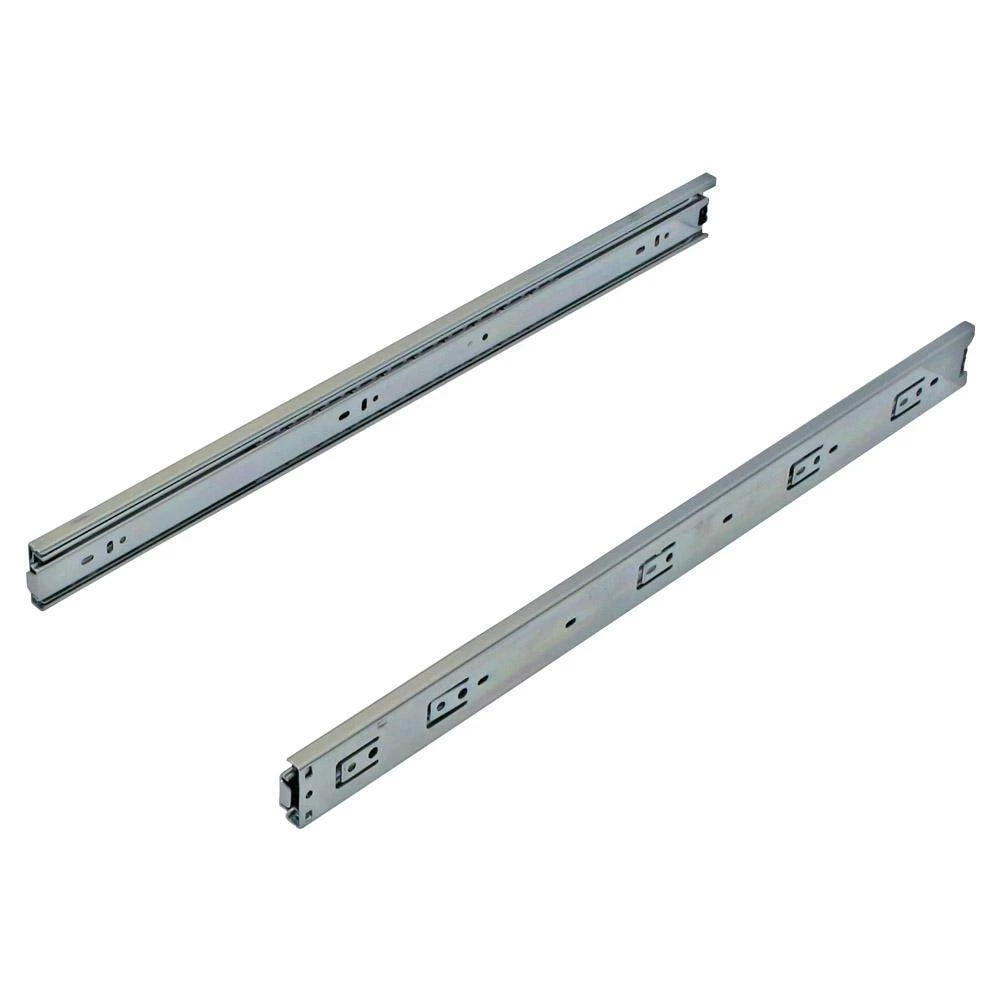

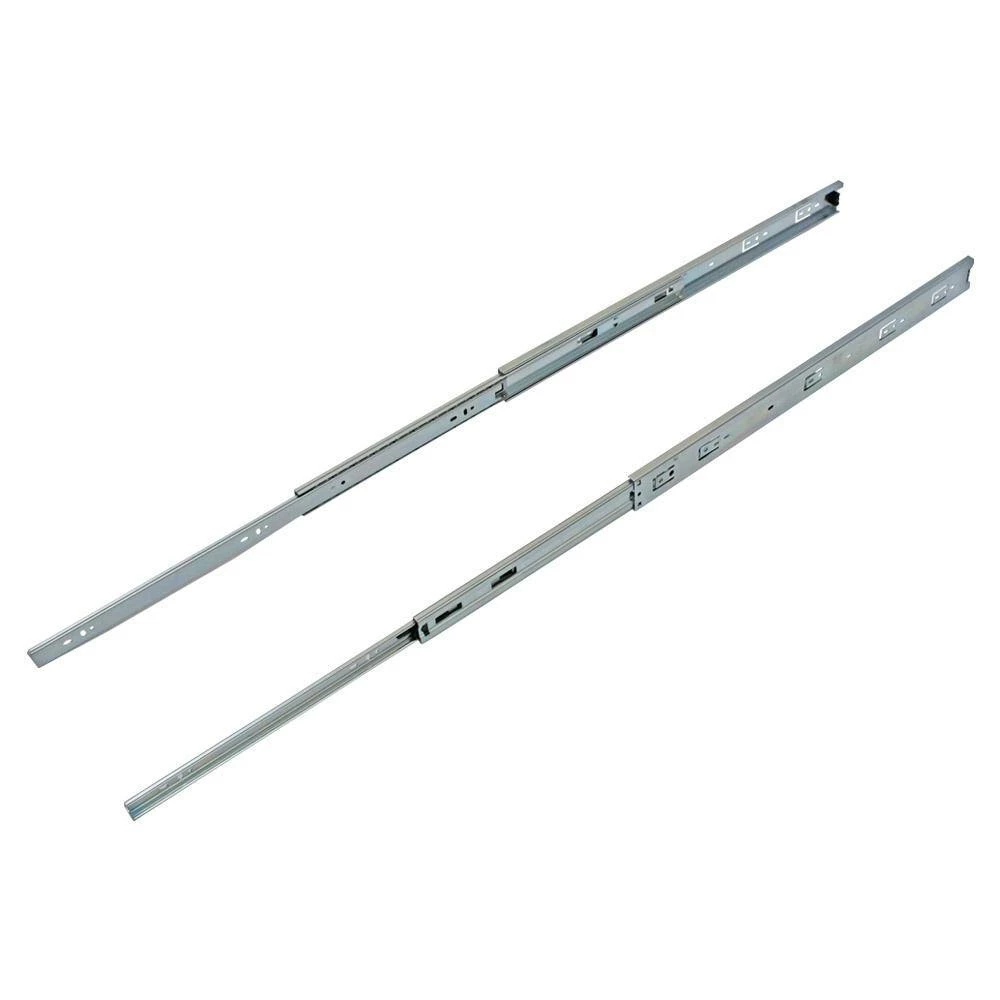

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair)

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair) - Image 2

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair) - Image 3

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair) - Image 4

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair) - Image 5

CSH 16 in. Full Extension Ball Bearing Side Mount Drawer Slide (15-Pair)

Original price was: $131.27.Current price is: $97.99.

SKU: CSH 313570076 Categories: Cabinet Hardware, Drawer Track Guides Tags: CSH, Drawer Slides, No Finish, Steel, Value Pack

fast shipping
Unbeatable quality, unbeatable prices.
There are quality problems, free return and exchange
Free and fast shipping worldwide

The 1150 series full extension drawer slide features a smooth ball bearing operation with a clear zinc chromate finish. The 1150 series slide is perfect for Kitchen, Bath, Furniture upgrades and many other useful applications. The 1150 series slides come in a range of length of sizes from 10 in. to 24 in.

Bulk contractor box
Hardware fasteners not included due to application capacity and variances
Full extension slide 100 lbs. load capacity per pair
Actual slide spec dimension 400 mm (15-3/4 in.) L x 45.6 mm (1-3/4 in.) H
Exceeds ANSI/BIFMA tests

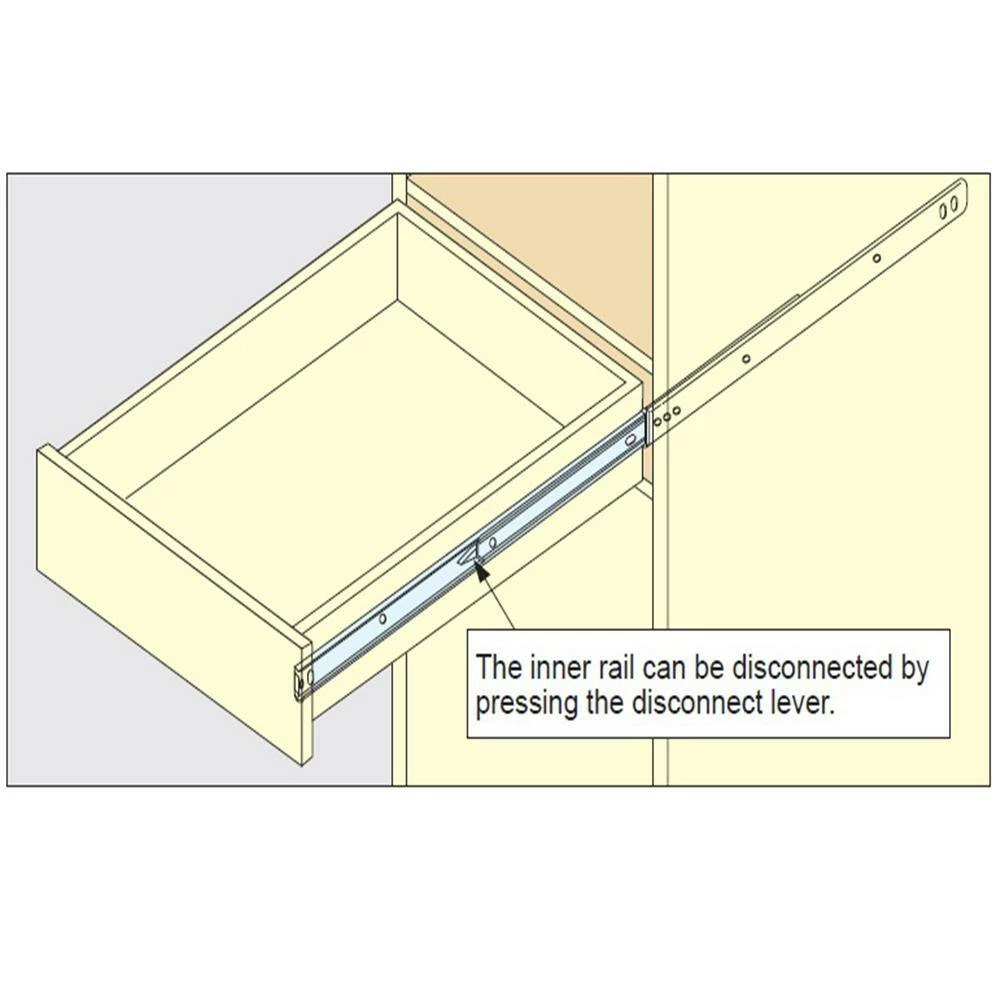

Easy lever disconnect for removing drawer box; 1/2 in. side clearance per side
32 mm hole pattern metric slide
Non-handed; steel ball bearings
Cabinet member slide features a front face frame mount screw hole for face frame-eliminates the use for a front face frame bracket
Optional back socket for face-frame applications use model number 39.1170

Builders Hardware Product Type	Drawer Slides
Features	Value Pack
Finish Family	Zinc
Hardware Color Family	Metallic
Hardware Finish Family	No Finish
Material	Steel
Package Quantity	15
Returnable	90-Day
Manufacturer Warranty	N/A
Product Depth (in.)	15.75 in
Product Height (in.)	1.75 in
Product Width (in.)	.50 in
